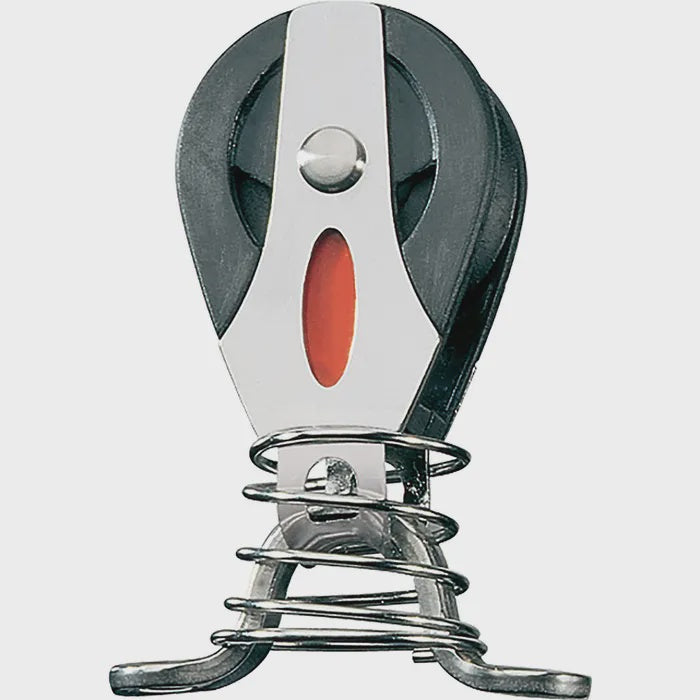

Series 30 Stand-Up Ball Bearing Block
$37.53
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
- Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
- High static and dynamic load capacity.
- Light weight.
- Versatile head fittings
Specifications
| Type of Block | Single |
|---|---|
| Sheave diameter (mm) | 30mm |
| B.L. (kg) | 750 |
| M.W.L. (kg) | 300 |
| Max. Rope diameter (mm) | 8 |
| Weight (g) | 38 |
Materials
Grade 316 Stainless Steel
