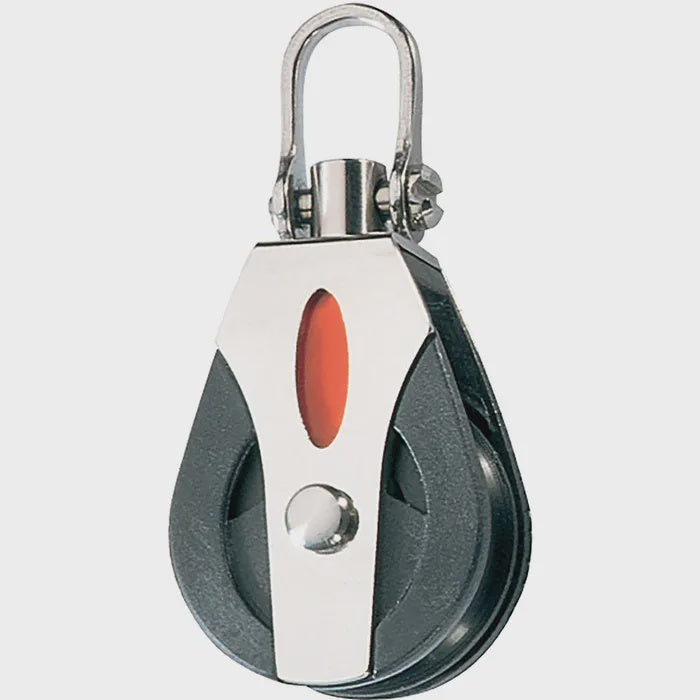

Series 30 Ball Bearing Single Block with Swivel Shackle
$36.46
Skip to product information
Series 30 Ball Bearing Single Block with Swivel Shackle
$36.46
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Features
- Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
- High static and dynamic load capacity.
- Light weight.
- Versatile head fitting
Specifications
| Type of Block | Single |
|---|---|
| B.L. (kg) | 750 |
| M.W.L. (kg) | 300 |
| Max. Rope diameter (mm) | 8 |
| Weight (g) | 34 |
| Pin Ø (mm) | 4 |
Materials
U.V. stabilised Acetal sheaves. Acetal ball bearings. Impact modified, fibre reinforced and U.V. stabilised Nylon cheeks. Grade 316 stainless steel load straps and head fittingsAcetal ball bearings. UV stabilised Acetal sheave. Grade 316 stainless steel load strap and head fitting. Impact and UV resistant, fibre reinforced Nylon cheeks
